Zinc Die Cast clamping lever Stainless Steel thread shoulder flame red

Material

Handle: Zinc Die Cast

Flame red

register request a quote

From £10.02 £8.35

SKU
WDS 8241
Select Your Sizes
All prices shown include VAT All prices shown exclude VAT
Contact Us About This Product
STOCK GUARANTEED - Please check the table below for the specific item codes in this range that we guarantee.
Scroll or use landscape mode on your device if you are unable to see all measurements.

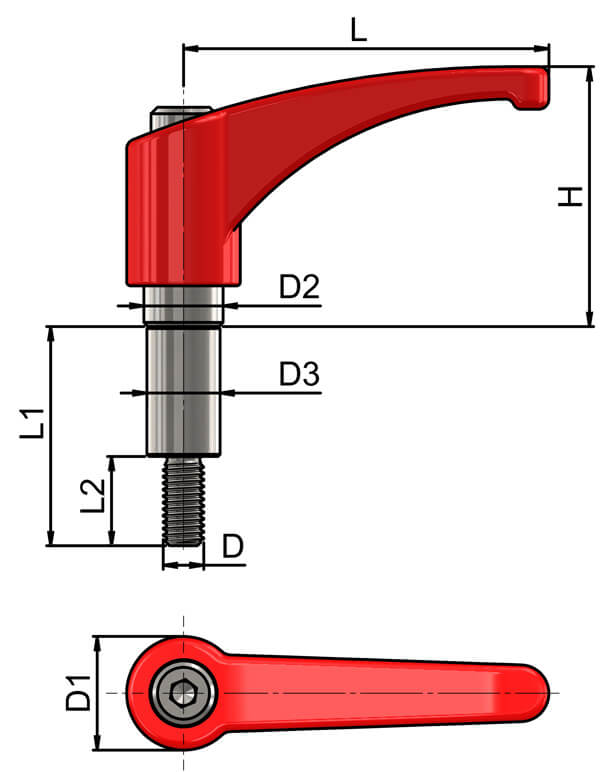

A
B
D
D1
D2
D3
D4
H
H1
H2
H3
H4
L
L1
L2
L3
N
Stroke
T
Products Per Page
Zinc Die Cast clamping lever Stainless Steel thread shoulder flame red
Grouped product items
WDS No.     Weight     A     B         D     D1     D2     D3     D4     H     H1     H2     H3     H4     L     L1     L2     L3     N         Stroke     T     Tip     Stock Guaranteed     Qty
Zinc Die Cast 45mm clamping lever Stainless Steel M3 thread 9.5mm shoulder flame red 8241-94505FR905 0.04 M3 14 9.75 6 32 45 18.5 9 < 10
Zinc Die Cast 45mm clamping lever Stainless Steel M4 thread 12mm shoulder flame red 8241-94506FR910 0.04 M4 14 9.75 7 32 45 23 11 < 10
Zinc Die Cast 45mm clamping lever Stainless Steel M5 thread 14mm shoulder flame red 8241-94506FR915 0.05 M5 14 9.75 9 32 45 25 11 < 10
Zinc Die Cast 45mm clamping lever Stainless Steel M5 thread 16mm shoulder flame red 8241-94506FR920 0.05 M5 14 9.75 9 32 45 27 11 Guaranteed
Zinc Die Cast 45mm clamping lever Stainless Steel M5 thread 17mm shoulder flame red 8241-94506FR925 0.05 M5 14 9.75 9 32 45 28 11 Guaranteed
Zinc Die Cast 45mm clamping lever Stainless Steel M6 thread 21mm 13mm shoulder flame red 8241-94506FR930 0.05 M6 14 9.75 10 32 45 34 13 Guaranteed
Zinc Die Cast 45mm clamping lever Stainless Steel M6 thread 21mm 15mm shoulder flame red 8241-94506FR935 0.05 M6 14 9.75 10 32 45 36 15 < 10
Zinc Die Cast 63mm clamping lever Stainless Steel M6 thread 27mm shoulder flame red 8241-96308FR940 0.11 M6 18 14 10 42.5 63 42 15 < 10
Total
