Crank handle keywayed with fixed grip 316 Stainless Steel

Material

Crank body and handle: 316 Stainless Steel

From £40.73 £33.94

SKU

WDS 8702

Select Your Sizes

All prices shown include VAT All prices shown exclude VAT

Trade discounts & delivery options applied at checkout

STOCK GUARANTEED - Please check the table below for the specific item codes in this range that we guarantee.

Scroll or use landscape mode on your device if you are unable to see all measurements.

Total

Cad content menu

Please Login to see select CAD

Product Info

SKU

WDS 8702

What is a crank handle and what are they used for?

A crank handle is a mechanical tool equipped with a lever attached to a rotating shaft, enabling manual force application for tasks like adjusting equipment, controlling valves, or operating manual winches and lifts. It provides necessary leverage and control, allowing for precise adjustments or specific actions to be performed manually.

Design Features

This crank handle is precision cast from 316 Stainless Steel, has a shotblased finish with a machine bore top and bottom of the mounting boss and the machine surface for the mounting grip. A keyway has also been precision cut in the bore. A 120 degree dimple is present half way up the handle boss - this is to aid the user in drilling a hole for a pin or set screw if desired. The supplied handle is a fixed 316 Stainless Steel grip that has an hourglass shape for an ergonomic feel.

Technical Specifications

More Information
MATERIAL	Stainless Steel
Unit Type	Metric
Stock Guaranteed	No

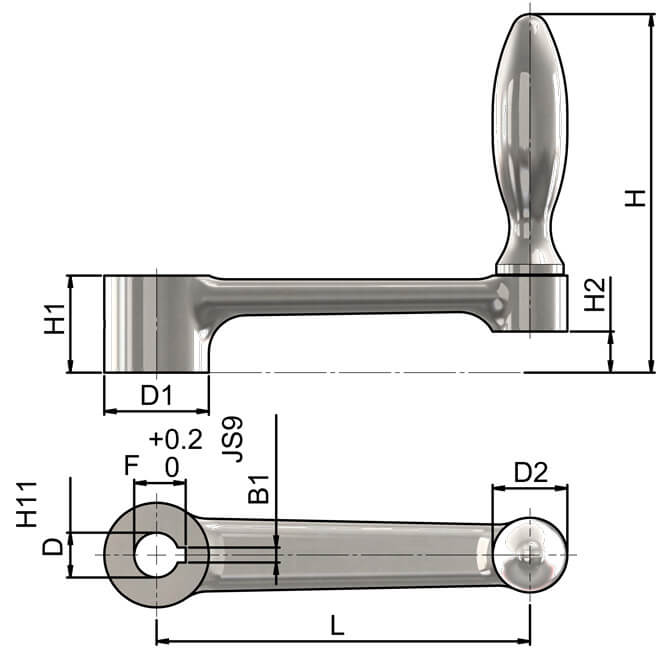

WDS No.	Weight	B1	D	D1	D2	F	H	H1	H2	L	Stock Guaranteed
Crank handle 80mm bore 10mm keyway 3mm fixed grip 316 Stainless Steel 8702-08010K3AF Edit the product code below. You need to be associated to a registered company in order to edit this product code, please speak to your company administrator or register Create New Company Account. WDS code 8702-08010K3AF Company Code	0.18	3	10	24	16	11.4	72	22	10	80	< 10	£40.73 £33.94 Unit Price 1 + £40.73 £33.94 11 + £38.69 £32.24 Saving 5% 25 + £34.82 £29.02 Saving 14% 50 + £29.60 £24.67 Saving 27% Total:
Crank handle 100mm bore 12mm keyway 4mm fixed grip 316 Stainless Steel 8702-10012K4AF Edit the product code below. You need to be associated to a registered company in order to edit this product code, please speak to your company administrator or register Create New Company Account. WDS code 8702-10012K4AF Company Code	0.34	4	12	28	20	13.8	96	26	11	100	Guaranteed	£53.77 £44.81 Unit Price 1 + £53.77 £44.81 11 + £51.08 £42.57 Saving 5% 25 + £45.97 £38.31 Saving 15% 50 + £39.07 £32.56 Saving 27% Total:
Crank handle 125mm bore 14mm keyway 5mm fixed grip 316 Stainless Steel 8702-12514K5AF Edit the product code below. You need to be associated to a registered company in order to edit this product code, please speak to your company administrator or register Create New Company Account. WDS code 8702-12514K5AF Company Code	0.43	6	14	30	20	16.3	98	28	10	125	Guaranteed	£64.39 £53.66 Unit Price 1 + £64.39 £53.66 11 + £61.18 £50.98 Saving 5% 25 + £55.06 £45.88 Saving 14% 50 + £46.79 £38.99 Saving 27% Total:
