Steel double split shaft collar flame red Zinc Die Cast indexing lever

Material

Handle: Zinc Die Cast

Shoulder: 304 Stainless Steel

Collar: Steel

Cap screw: Steel

register request a quote

From £13.96 £11.63

SKU
WDS 650
Select Your Sizes
All prices shown include VAT All prices shown exclude VAT
Contact Us About This Product
STOCK GUARANTEED - Please check the table below for the specific item codes in this range that we guarantee.
Scroll or use landscape mode on your device if you are unable to see all measurements.

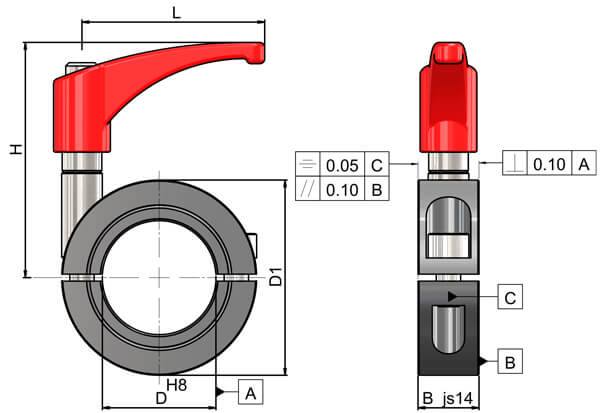

B
D
D1
D2
H
L
L1
Products Per Page
Steel double split shaft collar flame red Zinc Die Cast indexing lever
Grouped product items
WDS No.     Weight     B     D     D1     D2     H     L     L1     Stock Guaranteed     Qty
10mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-510FR 0.06 9 10 24 44 45 < 10
12mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-512FR 0.08 11 12 28 46.5 45 < 10
14mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-514FR 0.08 11 14 30 47 45 < 10
15mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-515FR 0.11 13 15 34 49 45 < 10
16mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-516FR 0.10 13 16 34 49 45 < 10
18mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-518FR 0.11 13 18 36 49 45 < 10
20mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-520FR 0.14 15 20 40 51 45 Guaranteed
22mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-522FR 0.15 15 22 42 51 45 < 10
25mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-525FR 0.16 15 25 45 52 45 < 10
28mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-528FR 0.17 15 28 48 57 45 Guaranteed
30mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-530FR 0.21 15 30 54 56 45 Guaranteed
32mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-532FR 0.20 15 32 54 57 45 Guaranteed
35mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-535FR 0.21 15 35 57 57 45 Guaranteed
40mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-540FR 0.21 15 40 60 58 45 < 10
50mm bore Steel double split shaft collar flame red Zinc Die Cast indexing lever 650-550FR 0.40 19 50 78 74.5 63 < 10
